Using Webhooks in Your Elfsight AI Chatbot

Want to send data from your Elfsight AI Chatbot to another application or service? Add a webhook URL to automatically send conversation details—such as transcripts, AI summaries, collected contacts, and more—whenever a conversation ends.

A webhook works by sending an HTTP POST request to the URL you specify, allowing you to build your own integrations and automations. Follow the steps below to set it up.

Webhooks are intended for users familiar with APIs and HTTP requests. Since webhook endpoints are managed on your side, we can't assist with custom development, but we're happy to help with the Elfsight side of the integration.

Setting Up Webhooks

To add webhook URLs for your AI Chatbot conversations, follow these steps:

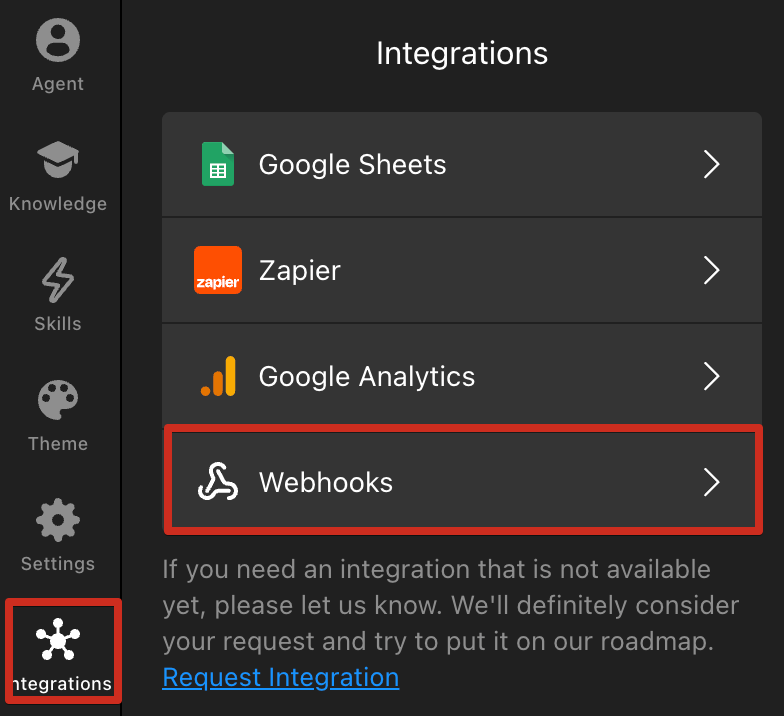

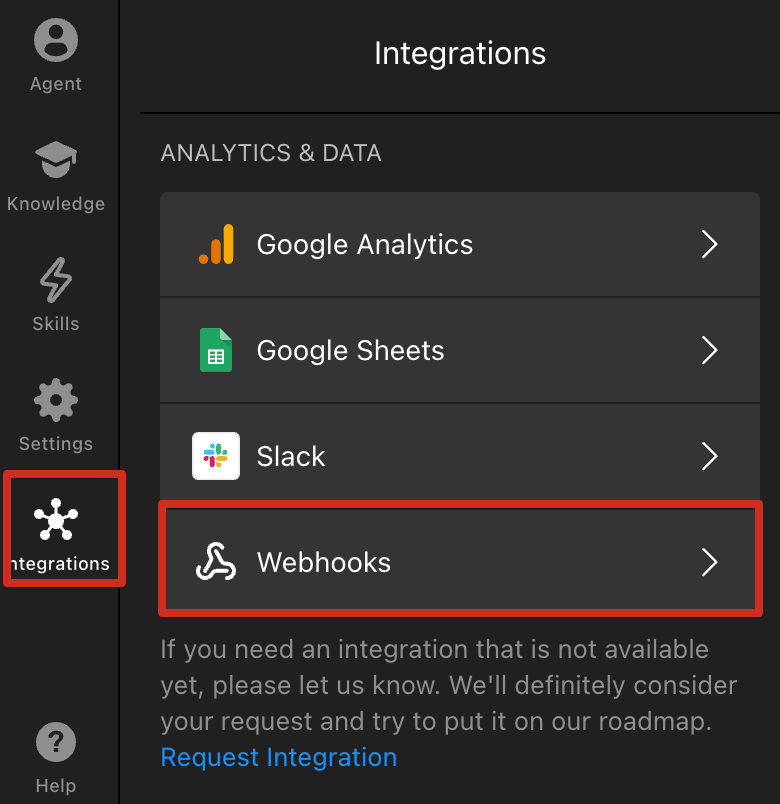

1: In your widget editor, go to the Integrations tab, scroll down to Analytics & Data, and click Webhooks:

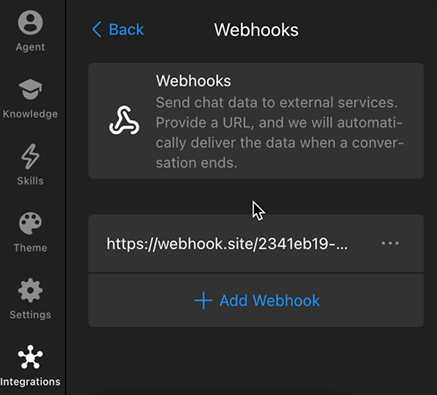

2: Add one or more webhook URLs that should receive your conversation data:

Don’t have a webhook URL for testing yet? Use a free service like webhook.site. Copy your unique URL and add it to the widget to inspect the conversation data it receives.

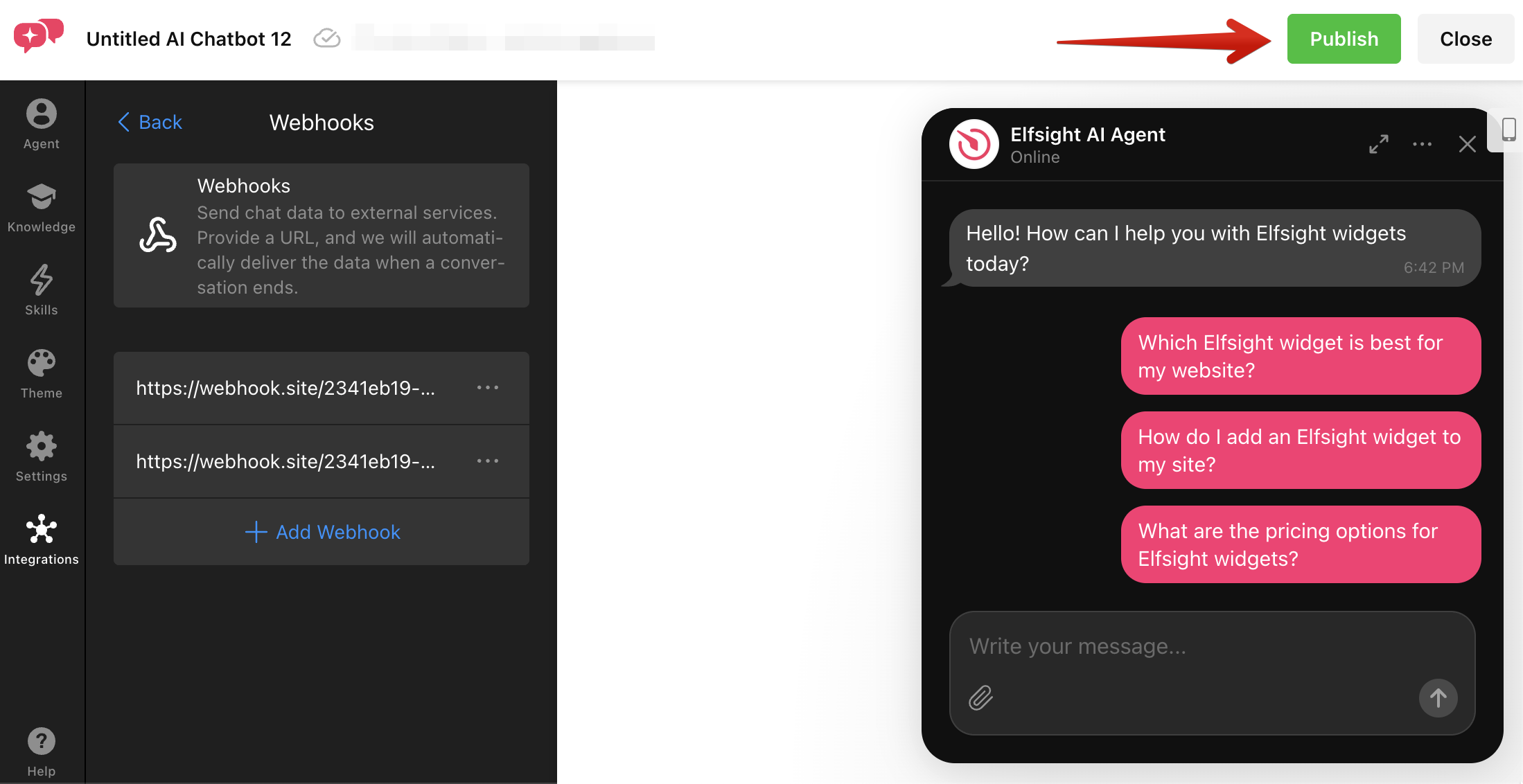

3: Publish your widget to enable the Webhook integration:

That’s it for the setup on the Elfsight side! 🎉 Let’s take a closer look at when webhooks are triggered and what data they send.

When Webhook Data Is Sent

After you add your webhook URL and publish the widget, the AI Chatbot sends an HTTP POST request whenever a conversation ends. This happens in either of the following cases:

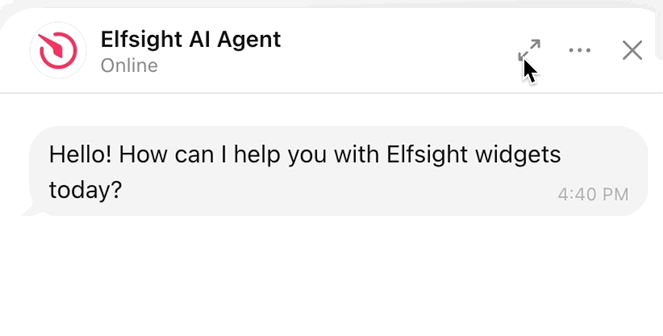

The visitor clicks New Chat in the chatbot window:
The configured inactivity period expires.

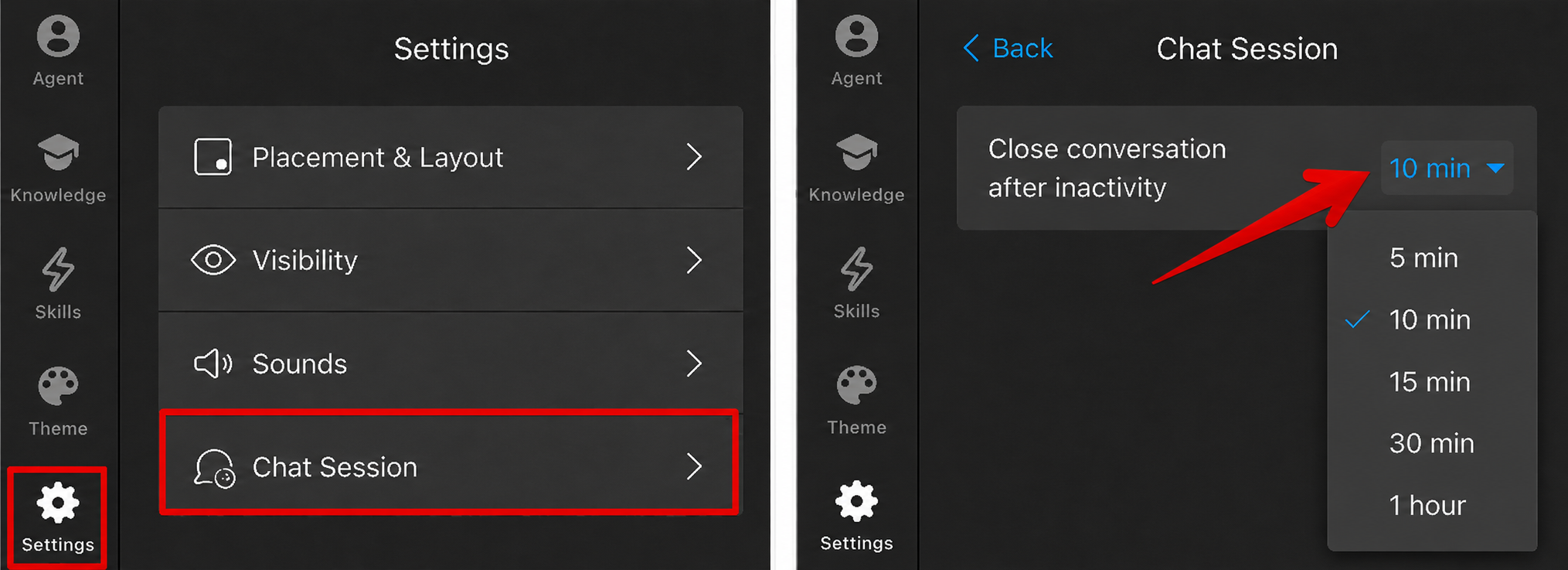

By default, a conversation closes after 10 minutes of inactivity. You can change this period in your widget editor under Settings → Chat Session → Close Conversation After Inactivity:

When one of the conditions is met, the widget sends one POST request to each webhook URL you have added. Next, we'll look at the structure of the conversation data included in the request.

Webhook Data Structure

The conversation data is sent in JSON format within the request body. It includes key details such as when and where the chat started, its duration and topic, an AI-generated summary, collected contact information, identified knowledge gaps, the full conversation transcript, and a direct link to the conversation in your Elfsight dashboard.

The same fields are included in every request. If certain information isn't available, the corresponding field may be empty.

Click the toggles below to view an example of the data structure and learn what each field represents:

Example JSON Data

The example below shows the structure of the conversation data sent to your webhook URL:

{
  "threadPid": "598f33ac-fa72-41b1-9a7f-2007455e32d1",
  "assistantPid": "51decad4-6ab7-473f-b0f7-24548dcbe78f",
  "widgetPid": "a395578b-f21f-4596-87fa-716df7b68432",
  "timeZone": "Etc/UTC",
  "chatStarted": "2026-10-20T14:32:10+00:00",
  "duration": "6 min",
  "sourcePage": "https://example.com/pricing",
  "chatTopic": "Refund policy for annual plans",
  "summary": "The visitor asked about refunds for annual plans, submitted contact information, and shared a screenshot. The assistant suggested contacting the team for details.",
  "leadName": "Jane Smith",
  "leadEmail": "jane@example.com",
  "leadPhone": null,
  "knowledgeGaps": [
    {
      "shortName": "Annual plan refunds",
      "summary": "What is the refund policy for annual plans?"
    }
  ],
  "transcript": [
    {
      "role": "AI Agent",
      "message": "Hi! How can I help you today?",
      "dateTime": "2026-10-20T14:32:10+00:00",
      "rating": null,
      "widgets": [],
      "attachments": [],
      "action": null
    },
    {
      "role": "Visitor",
      "message": "What is the refund policy for annual plans?",
      "dateTime": "2026-10-20T14:32:25+00:00",
      "rating": null,
      "widgets": [],
      "attachments": [],
      "action": null
    },
    {
      "role": "AI Agent",
      "message": "I don't have the exact details. Please share your contact information.",
      "dateTime": "2026-10-20T14:32:30+00:00",
      "rating": null,
      "widgets": [
        {
          "type": "collectContacts",
          "fields": [
            "email",
            "name",
            "phone",
            "consent"
          ],
          "buttons": [],
          "caption": null
        }
      ],
      "attachments": [],
      "action": "formRequest"
    },
    {
      "role": "System",
      "message": "You filled out the contact form",
      "dateTime": "2026-10-20T14:33:00+00:00",
      "rating": null,
      "widgets": [],
      "attachments": [],
      "action": "formSuccess"
    },
    {
      "role": "Visitor",
      "message": "Here is a screenshot of the plan.",
      "dateTime": "2026-10-20T14:33:10+00:00",
      "rating": null,
      "widgets": [],
      "attachments": [
        {
          "name": "screenshot.png",
          "type": "image",
          "url": "https://...",
          "fileSize": 48213
        }
      ],
      "action": null
    },
    {
      "role": "AI Agent",
      "message": "Thanks, Jane! You can contact our team for more details.",
      "dateTime": "2026-10-20T14:33:12+00:00",
      "rating": "good",
      "widgets": [
        {
          "type": "actionButtons",
          "fields": [],
          "buttons": [
            "Contact sales"
          ],
          "caption": null
        }
      ],
      "attachments": [],
      "action": null
    },
    {
      "role": "System",
      "message": "Chat ended due to inactivity",
      "dateTime": "2026-10-20T14:38:00+00:00",
      "rating": null,
      "widgets": [],
      "attachments": [],
      "action": "chatEndedInactivity"
    }
  ],
  "dashboardLink": "https://dash.elfsight.com/widget/.../chats/...",
  "language": "en",
  "durationMinutes": 6,
  "knowledgeGapsDashboardLink": "https://dash.elfsight.com/widget/...",
  "leadConsent": {
    "status": "granted",
    "text": "I consent to the processing of my personal data.",
    "submittedAt": "2026-10-20T14:33:00+00:00"
  }
}

Webhook Data Fields

The tables below explain what each field in the webhook data represents:

Main Data Fields

Field	Type	Description
threadPid	string (UUID)	Unique identifier of the conversation.
assistantPid	string (UUID)	Unique identifier of the AI Agent.
widgetPid	string (UUID)	Widget ID.
timeZone	string	Time zone selected in the widget settings.
chatStarted	string (ISO 8601) \| null	Date and time when the conversation started.
duration	string \| null	Conversation duration as text (e.g., `"6 min"`).
sourcePage	string (URL) \| null	Page or channel URL where the chat began.
chatTopic	string \| null	AI-identified conversation topic.
summary	string \| null	AI-generated conversation summary.
leadName	string \| null	Visitor's name from the Collect Contacts skill.
leadEmail	string \| null	Visitor's email from the Collect Contacts skill.
leadPhone	string \| null	Visitor's phone number from the Collect Contacts skill.
knowledgeGaps	object[]	Questions the AI Agent couldn't answer. Contains an empty array if no knowledge gaps were identified. See Knowledge Gaps Fields below.
transcript	object[]	Complete conversation history. See Chat Transcript Fields below.
dashboardLink	string (URL) \| null	Direct link to the conversation in your Elfsight dashboard.
language	string	Language selected in the widget settings, as a locale code (e.g., `"en"`).
durationMinutes	number \| null	Conversation duration in minutes; `null` if not closed.
knowledgeGapsDashboardLink	string (URL)	Link to Knowledge Gaps in your dashboard.
leadConsent	object \| null	Consent details from the Collect Contacts skill. See Lead Consent Fields below.

Knowledge Gaps Fields

Field	Type	Description
shortName	string	Short title describing the knowledge gap.
summary	string	Detailed description of the question the AI Agent couldn't answer.

Chat Transcript Fields

Field	Type	Description
role	string	Message sender: `"AI Agent"`, `"Visitor"`, `"System"`, or `"Channel Owner"` (channel owner's reply).
message	string	Plain text for all roles, with HTML removed.
dateTime	string (ISO 8601)	Date and time when the message was sent.
rating	string \| null	Message rating: `"good"`, `"bad"`, or `null`.
widgets	object[]	Skill widgets included in the message. Contains `[]` if none. See Skill Widget Fields below.
attachments	object[]	Files attached to the message. Contains `[]` if none. See Attachment Fields below.
action	string \| null	Associated action (e.g., `formRequest`, `formSuccess`, `followUp`, `chatEndedByUser`, `chatEndedInactivity`) or `null`.

Skill Widget Fields

Field	Type	Description
type	string	Skill widget type: `collectContacts`, `actionButtons`, `contactHuman`, `booking`, `createTicket`, or `followUp`.
fields	array	Field identifiers as strings (e.g., `"email"`, `"name"`).
buttons	array	Action button labels as strings.
caption	string \| null	Skill widget caption.

Attachment Fields

Field	Type	Description
name	string	Original filename, including its extension.
type	string	Attachment type: `"image"` or `"file"`.
url	string (URL)	Public, non-expiring link to the attached file.
fileSize	number	Attachment size in bytes.

Field	Type	Description
status	string	Consent status: `"granted"` or `"not_asked"`.
text	string \| null	Consent statement shown in the form.
submittedAt	string (ISO 8601) \| null	Date and time of consent submission.

You can now process the received conversation data in an external service, store it in a database, or use it in your own integrations and automations.

We hope this article was helpful! If you have any questions or need assistance, feel free to contact our Support Team — we're happy to help! 🙌
